MicroCT

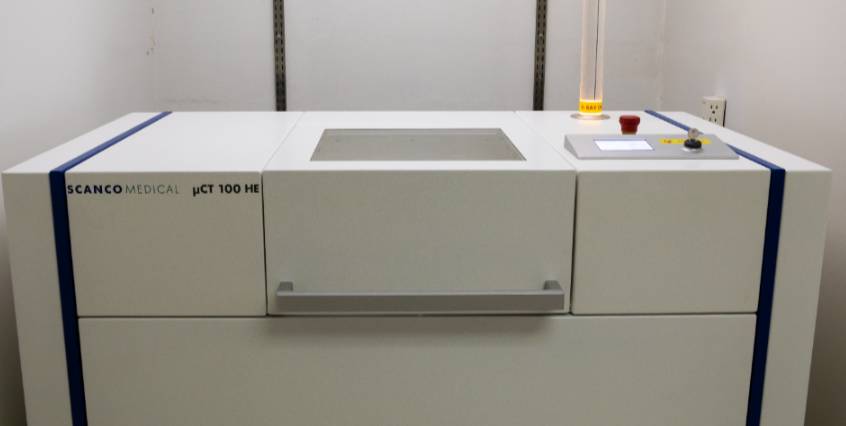

ScancoµCT 100HE Product Summary

The Scanco µCT 100HE is a high-end, cabinet-style cone-beam micro-CT scanner optimized for large sample sizes while maintaining sub‑5 µm resolution. Fully shielded and plug‑and‑play with no external radiation shielding required, it supports a wide range of materials via flexible power and filtration options. Optional accessories make it ideal for high-throughput labs and advanced material testing setups.

Key Features

  • Wide Field of View & High Resolution
    • Maximum nominal pixel size: 1.5 µm - 200 µm isotopic
    • Achieves < 5 µm resolution (10% MTF) across large samples
  • Large Sample Capacity
    • Scan volume up to 95 mm w x 140 mm h
    • Support for samples up to 100 x 160 mm
  • Robust X-Ray Source
    • Spot size: 5 - 40 µm (4-39 W) output
    • Voltage range: 45 - 130 kVp (preset at 45, 55, 70, 90, 130 kVp)
  • High Performance Detector
    • 3720 x 768 element detector with 74.8 µm pitch
    • Image matrix ranges from 512to 8192pixels
